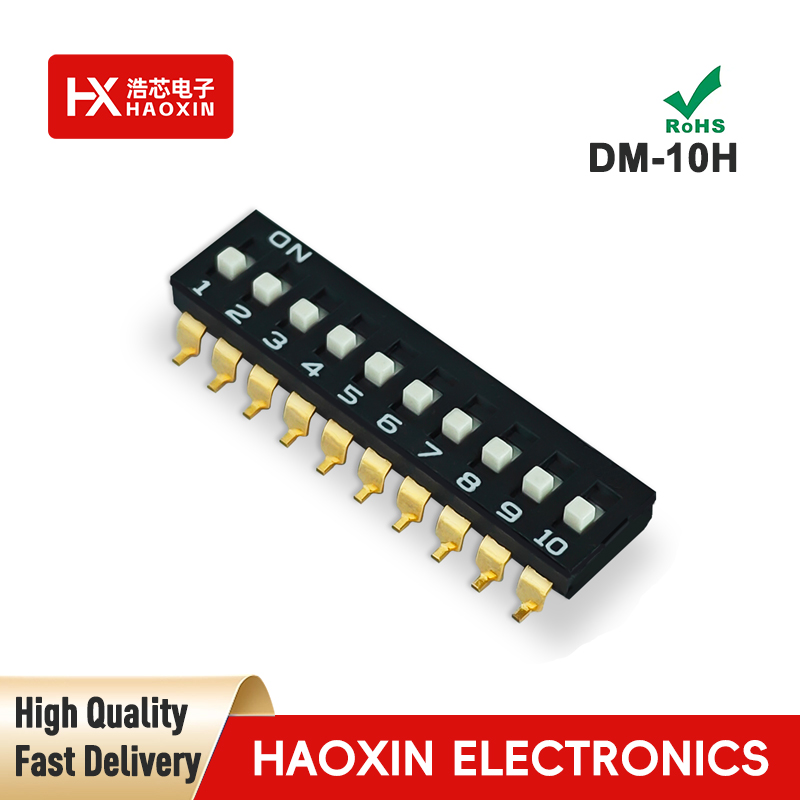

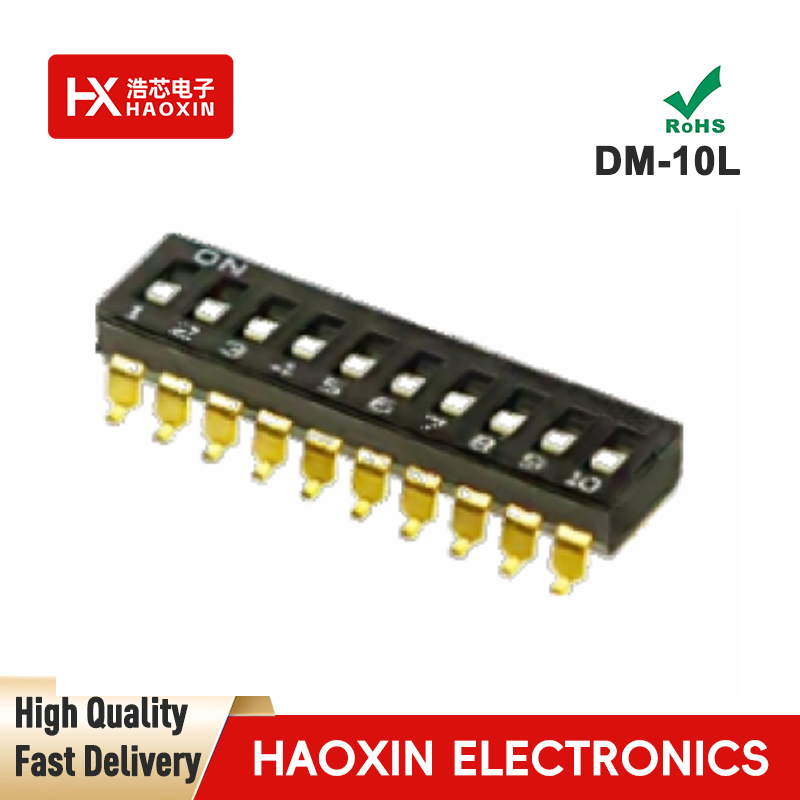

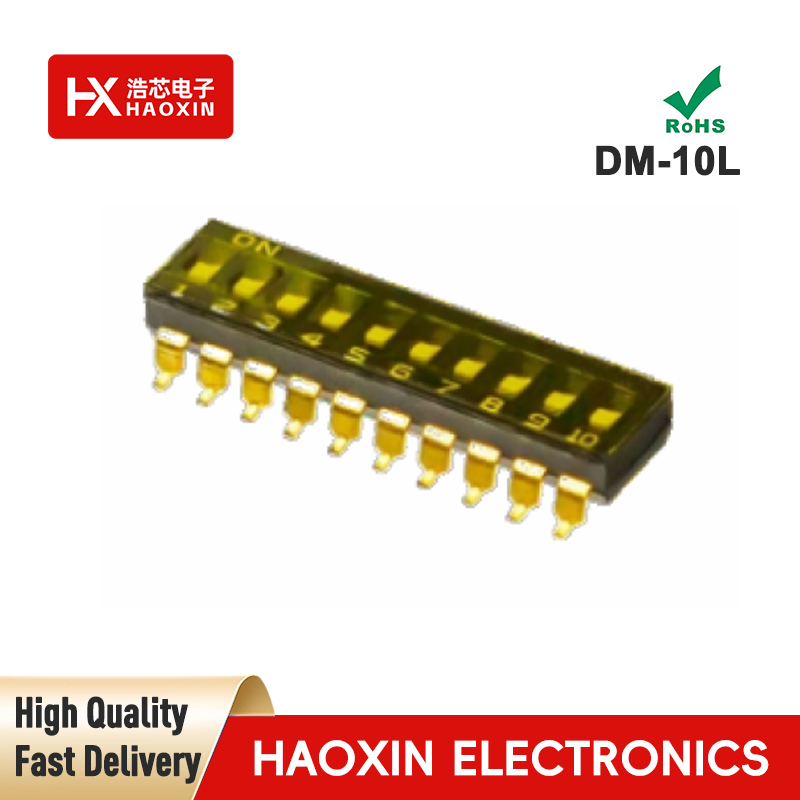

2.54mm 10 Positions SPST Standary SMD&SMT Type Dip Switches
SMD&SMT Haoxin Brand DM 2.54 Series DIP Switches, covering specifications from 2P to 12P. These DIP switches not only withstand high temperatures and boast a long lifespan, but crucially, their tactile feedback delivers the satisfying click of popping bubble wrap! Whether you're developing smart home systems, debugging automation equipment, or testing circuit boards, it ensures every signal transmission link remains rock-solid stable. Don't be swayed by other brands—Haoxin is a professional DIP switch manufacturer with 20 years of industry expertise, standing tall in the market with better pricing, better service, and better quality.
Brand:Haoxin
Model: DM-10...
Color: Black
Plating: Glod
Wave Soldering: 260 Degrees
Contact Rating:25mA 24VDC
Contact Rating:100mA
Product origin:China
Delivery time:7-30days
Products DETAILS
2.54mm 10 Positions SPST Standary SMD&SMT Type Dip Switches
MATERIALS
Cover: Engineering Plastics, Black
Base: Engineering Plastics, Black
Actuator: Engineering Plastics,White
Terminal: Copper Alloy ,Plating Gold
ELECTRICAL SPECIFICATIONS
1．Contact resistance（initial）： ≤50mΩ
2．Contact resistance（after test）： ≤100mΩ
3．Contact rating（status changes often）： 25mA 24VDC
4．Contact rating（status constant）： 100mA
5． Insulation resistance： ≥1000MΩ min. 500V DC
6．Dielectric strength： 500V AC/1 mintue. 1mA
7．Capacitance between adjacent switches： 5PF max. 1V AC/100HZ
MECHANICAL SPECIFICATIONS
1．Operation force： ≤8N
2．Mechanical life： 2000 operations
3．Operating Temperature： -40℃ ～ +85℃
4．Storage Temperature： -40℃ ～ +85℃
5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered
6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

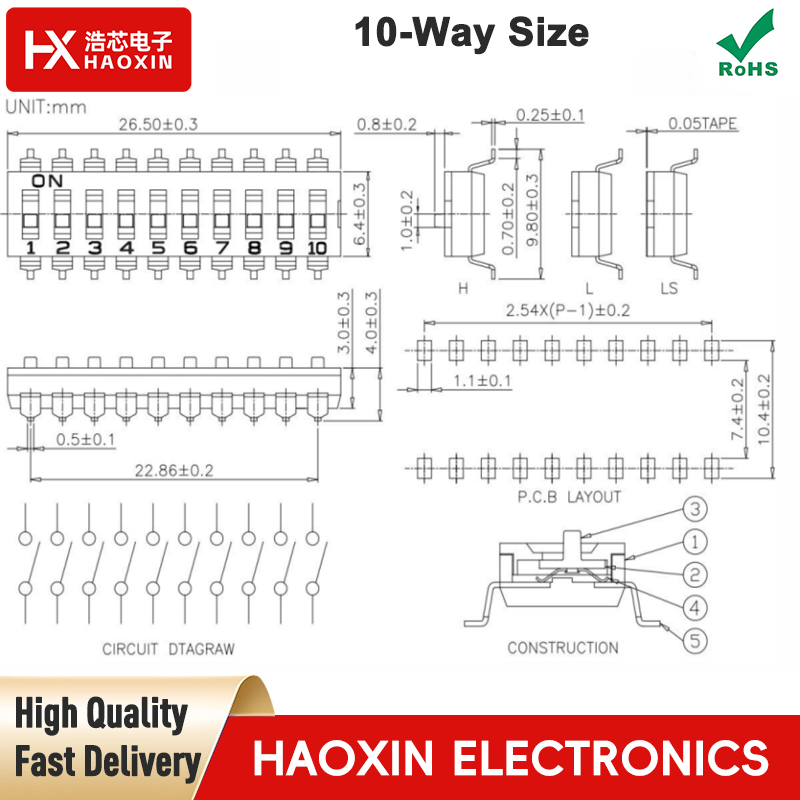

Haoxin SMD&SMT dip switch's pin centre distance of 2.54mm perfectly matches universal PCB grids, enabling direct compatibility with DIP packages, DuPont sockets and similar components for ease of DIY and mass production. Primarily featuring gull-wing SMD terminals, these are suitable for reflow soldering and offer high efficiency in automated assembly.
Haoxin 2.54mm SMD&SMT Type DIP Switches Core Advantages:
1.Universal Compatibility: 2.54mm standard pitch accommodates all SMD designs, ensuring seamless replacement and maintenance.
2. High Reliability & Low Loss: Gold-plated contacts deliver low-resistance stability with superior insulation/voltage resistance, maintaining reliability in wide temperature and vibration environments.
3. Intuitive Durability: Clear toggle status indicates configuration without host computer, enabling rapid field setup; 2000-cycle lifespan meets industrial fixed configuration needs.
4. Process Tolerance & Stability: Secure through-hole soldering with high temperature resistance and interference immunity ensures high mass production yield and consistency.
5. Cost & Environmental Compliance: High cost-performance ratio, RoHS compliant, suitable for both mass production and customization, with stable long-term supply.
Haoxin 2.54mm SMD&SMT Type DIP Switches Typical Applications:
1. Industrial Control: PLC module addresses, inverter parameters, sensor range settings.
2. Communication Equipment: RS485/CAN slave addresses, serial port baud rate and terminating resistor selection.
3. Instrumentation: Thermostat alarm thresholds, signal gain, channel enable.
4. Embedded & Test: Boot modes, function masking, test point selection—streamlining debugging workflows.
Cover: Engineering Plastics, Black
Base: Engineering Plastics, Black
Actuator: Engineering Plastics,White
Terminal: Copper Alloy ,Plating Gold
ELECTRICAL SPECIFICATIONS
1．Contact resistance（initial）： ≤50mΩ
2．Contact resistance（after test）： ≤100mΩ
3．Contact rating（status changes often）： 25mA 24VDC
4．Contact rating（status constant）： 100mA
5． Insulation resistance： ≥1000MΩ min. 500V DC
6．Dielectric strength： 500V AC/1 mintue. 1mA
7．Capacitance between adjacent switches： 5PF max. 1V AC/100HZ
MECHANICAL SPECIFICATIONS
1．Operation force： ≤8N
2．Mechanical life： 2000 operations
3．Operating Temperature： -40℃ ～ +85℃
4．Storage Temperature： -40℃ ～ +85℃
5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered
6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Haoxin SMD&SMT dip switch's pin centre distance of 2.54mm perfectly matches universal PCB grids, enabling direct compatibility with DIP packages, DuPont sockets and similar components for ease of DIY and mass production. Primarily featuring gull-wing SMD terminals, these are suitable for reflow soldering and offer high efficiency in automated assembly.
Haoxin 2.54mm SMD&SMT Type DIP Switches Core Advantages:
1.Universal Compatibility: 2.54mm standard pitch accommodates all SMD designs, ensuring seamless replacement and maintenance.
2. High Reliability & Low Loss: Gold-plated contacts deliver low-resistance stability with superior insulation/voltage resistance, maintaining reliability in wide temperature and vibration environments.
3. Intuitive Durability: Clear toggle status indicates configuration without host computer, enabling rapid field setup; 2000-cycle lifespan meets industrial fixed configuration needs.
4. Process Tolerance & Stability: Secure through-hole soldering with high temperature resistance and interference immunity ensures high mass production yield and consistency.
5. Cost & Environmental Compliance: High cost-performance ratio, RoHS compliant, suitable for both mass production and customization, with stable long-term supply.
Haoxin 2.54mm SMD&SMT Type DIP Switches Typical Applications:
1. Industrial Control: PLC module addresses, inverter parameters, sensor range settings.
2. Communication Equipment: RS485/CAN slave addresses, serial port baud rate and terminating resistor selection.
3. Instrumentation: Thermostat alarm thresholds, signal gain, channel enable.
4. Embedded & Test: Boot modes, function masking, test point selection—streamlining debugging workflows.
