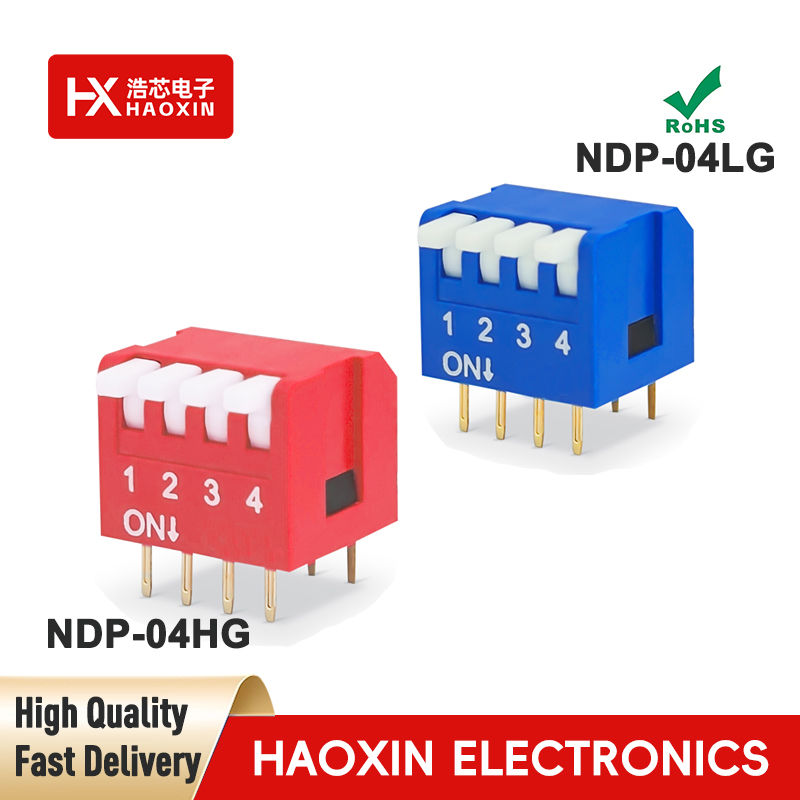

2.54mm 4-Way SPST Standary Piano Type Dip Switches

The 4-way SPST standary piano type dip switches pitch is 2.54mm. It features 8 pins made of 0.2mm thick copper alloy with a 0.8μm gold plating. The housing is constructed from high-temperature-resistant plastic and meets environmental protection requirements.

Brand:Haoxin

Model: NDP-04...G

Color: Red,Blue,Black

Plating: Glod

Wave Soldering: 260 Degrees

Contact Rating:25mA 24VDC

Contact Rating:100mA

Product origin:China

Delivery time:7-30days

Send Email:

info@hxelect.com

Products

Products DETAILS

2.54mm 4-Way SPST Standary Piano Type Dip Switches

MATERIALS

Cover: Engineering Plastics, Red,Blue,Black

Base: Engineering Plastics, Black

Actuator: Engineering Plastics,White

Terminal: Copper Alloy ,Plating Gold

ELECTRICAL SPECIFICATIONS

1．Contact resistance（initial）： ≤50mΩ

2．Contact resistance（after test）： ≤100mΩ

3．Contact rating（status changes often）： 25mA 24VDC

4．Contact rating（status constant）： 100mA

5． Insulation resistance： ≥1000MΩ min. 500V DC

6．Dielectric strength： 500V AC/1 mintue. 1mA

7．Capacitance between adjacent switches： 5PF max. 1V AC/100HZ

MECHANICAL SPECIFICATIONS

1．Operation force： ≤8N

2．Mechanical life： 2000 operations

3．Operating Temperature： -40℃ ～ +85℃

4．Storage Temperature： -40℃ ～ +85℃

5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered

6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
