2.54mm 1-Way Red SPST Standary Right Angle Type Dip Switches

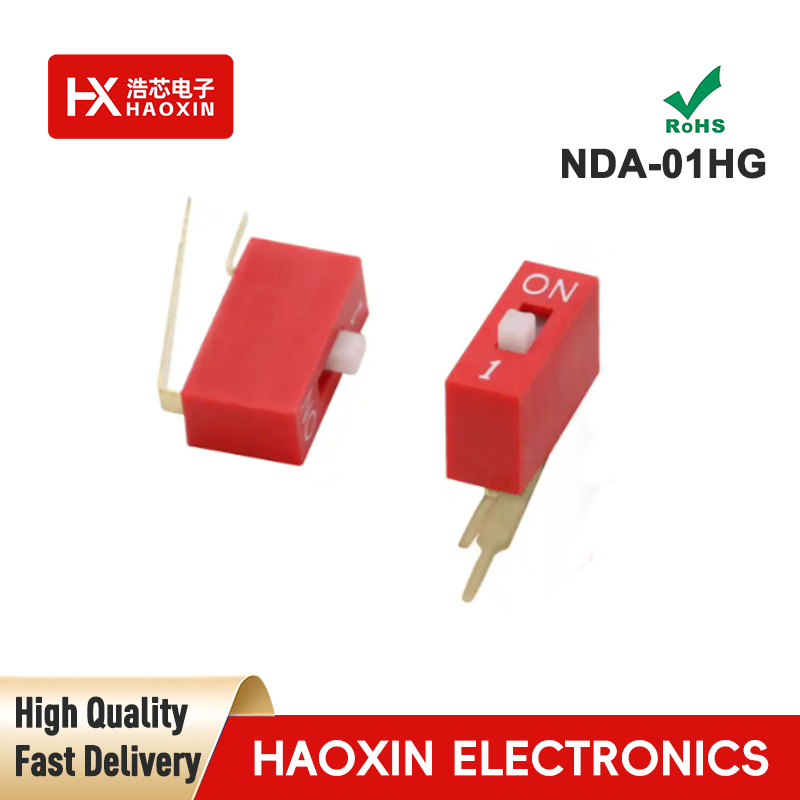

The 1-way red SPST standary right angle type dip switches typically available in red (customizable in blue or black), the housing offers high visibility. The bent-leg design facilitates insertion into PCB boards and soldering for secure mounting, enhancing the solder joint's resistance to mechanical stress. With a 2.54mm pin pitch, it is compatible with most PCB circuit boards. Multiple bit options ranging from 2 to 12 ways are available to meet diverse circuit requirements.
Brand:Haoxin
Model: NDA-01HG
Color: Red
Plating: Glod
Wave Soldering: 260 Degrees
Contact Rating:25mA 24VDC
Contact Rating:100mA
Product origin:China
Delivery time:7-30days
Products DETAILS
2.54mm 1-Way Red SPST Standary Right Angle Type Dip Switches
MECHANICAL SPECIFICATIONS
1．Operation force： ≤8N
2．Mechanical life： 2000 operations
3．Operating Temperature： -40℃ ～ +85℃
4．Storage Temperature： -40℃ ～ +85℃
5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered
6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Application Scenarios:The 2.54mm 1-way red SPST standary right angle type DIP switches are widely used for parameter configuration and function selection in electronic devices, such as PLCs in industrial control, parameter adjustment in instruments and meters, feature configuration in smart home devices, and mode switching in security systems and communication equipment. They offer convenient operation without requiring complex programming.
1．Operation force： ≤8N
2．Mechanical life： 2000 operations
3．Operating Temperature： -40℃ ～ +85℃
4．Storage Temperature： -40℃ ～ +85℃
5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered
6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Application Scenarios:The 2.54mm 1-way red SPST standary right angle type DIP switches are widely used for parameter configuration and function selection in electronic devices, such as PLCs in industrial control, parameter adjustment in instruments and meters, feature configuration in smart home devices, and mode switching in security systems and communication equipment. They offer convenient operation without requiring complex programming.
