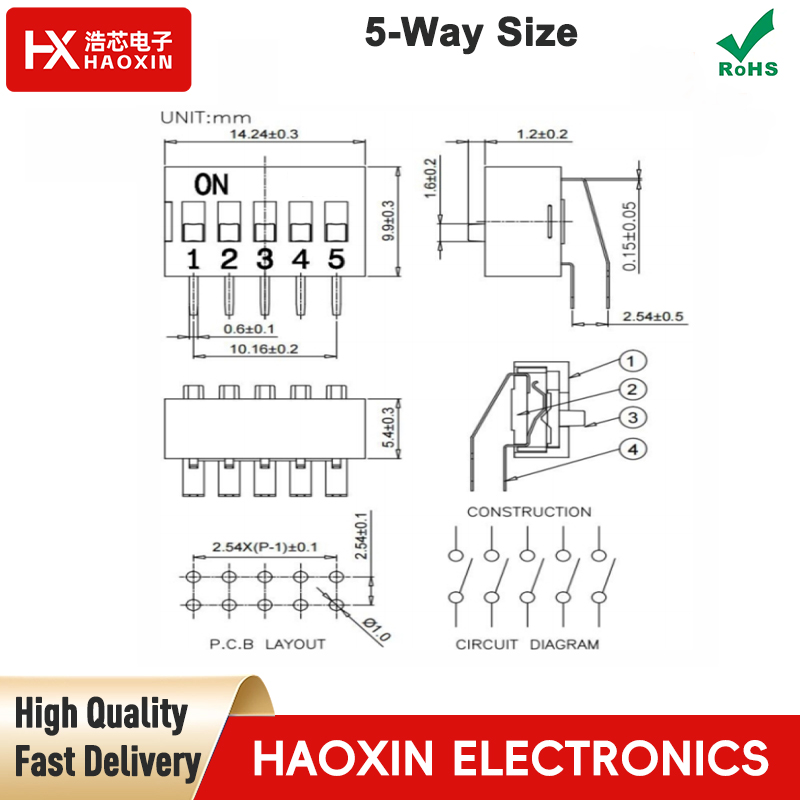

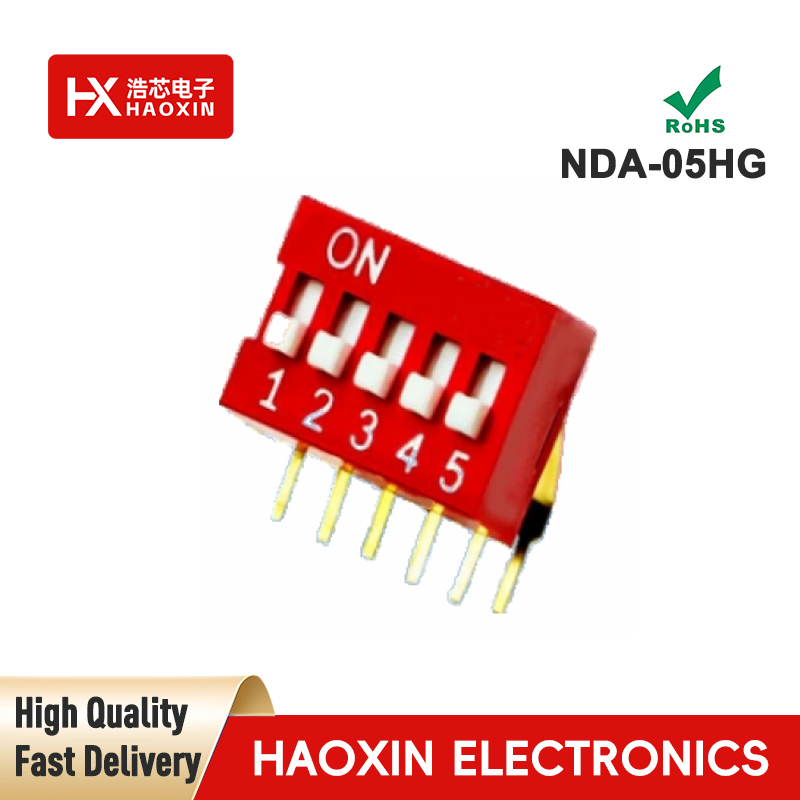

2.54mm 5-Way Red SPST Standary Right Angle Type Dip Switches
The 5-way red SPST standary right angle type dip switches typically available in red (customizable in blue or black), the housing offers high visibility. The bent-leg design facilitates insertion into PCB boards and soldering for secure mounting, enhancing the solder joint's resistance to mechanical stress. With a 2.54mm pin pitch, it is compatible with most PCB circuit boards. Multiple bit options ranging from 2 to 12 ways are available to meet diverse circuit requirements.
Brand:Haoxin
Model: NDA-05HG
Color: Red
Plating: Glod
Wave Soldering: 260 Degrees
Contact Rating:25mA 24VDC
Contact Rating:100mA
Product origin:China
Delivery time:7-30days
Products DETAILS
2.54mm 5-Way Red SPST Standary Right Angle Type Dip Switches
MATERIALS
Cover: Engineering Plastics, Red
Base: Engineering Plastics, Black
Actuator: Engineering Plastics,White
Terminal: Copper Alloy ,Plating Gold
ELECTRICAL SPECIFICATIONS
1．Contact resistance（initial）： ≤50mΩ
2．Contact resistance（after test）： ≤100mΩ
3．Contact rating（status changes often）： 25mA 24VDC
4．Contact rating（status constant）： 100mA
5． Insulation resistance： ≥1000MΩ min. 500V DC
6．Dielectric strength： 500V AC/1 mintue. 1mA
7．Capacitance between adjacent switches： 5PF max. 1V AC/100HZ
MECHANICAL SPECIFICATIONS
1．Operation force： ≤8N
2．Mechanical life： 2000 operations
3．Operating Temperature： -40℃ ～ +85℃
4．Storage Temperature： -40℃ ～ +85℃
5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered
6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Application Scenarios:The 2.54mm 5-way red SPST standary right angle type DIP switches are widely used for parameter configuration and function selection in electronic devices, such as PLCs in industrial control, parameter adjustment in instruments and meters, feature configuration in smart home devices, and mode switching in security systems and communication equipment. They offer convenient operation without requiring complex programming.
Cover: Engineering Plastics, Red
Base: Engineering Plastics, Black
Actuator: Engineering Plastics,White
Terminal: Copper Alloy ,Plating Gold
ELECTRICAL SPECIFICATIONS
1．Contact resistance（initial）： ≤50mΩ
2．Contact resistance（after test）： ≤100mΩ
3．Contact rating（status changes often）： 25mA 24VDC
4．Contact rating（status constant）： 100mA
5． Insulation resistance： ≥1000MΩ min. 500V DC
6．Dielectric strength： 500V AC/1 mintue. 1mA
7．Capacitance between adjacent switches： 5PF max. 1V AC/100HZ
MECHANICAL SPECIFICATIONS
1．Operation force： ≤8N
2．Mechanical life： 2000 operations
3．Operating Temperature： -40℃ ～ +85℃
4．Storage Temperature： -40℃ ～ +85℃
5．Solderability： After fluxed 235±5℃ for 5±0.5seconds,95%covered
6．Resistance to soldering heat： 260±5℃ for 5±1seconds.twice
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Application Scenarios:The 2.54mm 5-way red SPST standary right angle type DIP switches are widely used for parameter configuration and function selection in electronic devices, such as PLCs in industrial control, parameter adjustment in instruments and meters, feature configuration in smart home devices, and mode switching in security systems and communication equipment. They offer convenient operation without requiring complex programming.
